| BM2.2-60 series thin film evaporator |

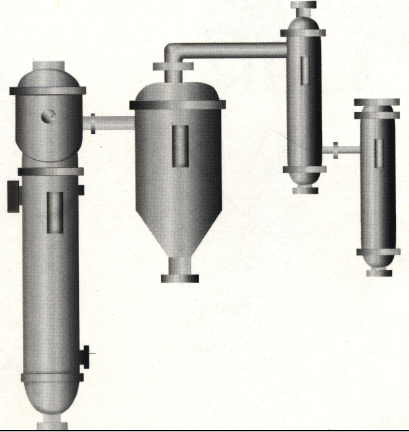

The thin film evaporator unit consists of three main components: evaporator, vapor liquid separator, preheater, and a simple separator. The evaporator is a rising film tube heat exchanger. This evaporator has the characteristics of high production capacity, high efficiency, and short heating time of materials, and is suitable for the concentration of dilute solutions in industries such as pharmaceuticals, food, and chemical. The contact parts between this equipment and materials are made of OCr18Ni9 stainless steel, which has good corrosion resistance, durability, and meets the requirements of pharmaceutical hygiene.
Model
Project |
2.2m2 |
5.5m2 |
8m2 |
12m2 |
16m2 |
20m2 |
30m2 |
40m2 |
60m2 |
| Evaporation area
m2 |
2.2 |
5.5 |
8 |
12 |
16 |
20 |
30 |
40 |
60 |
| Preheating area
m2 |
1 |
2.17 |
4 |
6 |
8 |
10 |
15 |
20 |
30 |
| Steam working pressure
Mpa |
0.3 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
| Available vacuum degree
Kpa |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
| Evaporation capacity
kg/h |
140 |
350 |
550 |
850 |
1100 |
1500 |
2100 |
2800 |
4200 |
| Energy consumption
kg/h |
155 |
385 |
605 |
935 |
1265 |
1650 |
2310 |
3080 |
4620 |
| Medium |
Shell side: Steam tube side: Liquid medicine |
| Weight kg |
250 |
520 |
750 |
1020 |
1250 |
2300 |
2950 |
3500 |
5700 |
| | |   |
|
|
